June 2025 — As global textile factories grow more international, operators from Bangladesh to Brazil increasingly need to navigate machine control panels in a language they understand. For manufacturers running single jersey or double jersey circular knitting machines, switching the interface language is one of the first setup steps that can dramatically reduce operator error, improve training efficiency, and boost overall production output.
Why Language Settings Matter on Industrial Knitting Machines
Modern circular knitting machine control panels — whether on single jersey, double jersey, or open-width machines — are sophisticated computer-driven systems. They display real-time data including RPM, yarn tension, feeder speed, pattern programs, fault alerts, and production counters.
When an operator cannot read on-screen instructions clearly, the consequences can be severe: misread fault codes, incorrect parameter entries, accidental machine stops, or even mechanical damage from wrong settings. A correctly set knitting machine interface language is therefore not a cosmetic preference — it is a safety and productivity issue.
Most modern jersey circular knitting machines from leading manufacturers — including Mayer & Cie., Santoni, Fukuhara, Pai Lung, and Chinese OEM brands — support multilingual interfaces. Common supported languages include English, Chinese (Simplified), Chinese (Traditional), Turkish, Portuguese, Spanish, Bangla, and Vietnamese, depending on the brand and firmware version.
General Steps to Change the Language on a Jersey Circular Knitting Machine
While exact menus vary by brand and control system version, the general process for changing the display language on a single jersey or double jersey knitting machine HMI follows a consistent pattern across most manufacturers.
Step 1: Power On and Access the Main Control Screen
Start the machine normally. Once the circular knitting machine control panel is fully booted, you will see the main dashboard — typically showing machine speed (RPM), fabric length counter, and alarm status. This is your starting point.
Step 2: Enter the System Settings Menu
Look for a settings icon (gear symbol) or a button labeled 'Setup,' 'System,' 'Configuration,' or 'Menu' on the touchscreen or keypad. On older machines with physical buttons, this may be labeled 'SET' or accessed by holding a function key for 3–5 seconds.
Tip: On some Chinese-manufactured single jersey machines, the settings menu is accessed by pressing and holding the 'Mode' and 'Enter' keys simultaneously for 3 seconds.
Step 3: Locate the Language Option
Inside the system settings menu, scroll or navigate to find the language / Dil / Idioma option. On modern touchscreen HMI panels — such as those found on high-spec double jersey circular knitting machines — this is typically listed under:
- · System Settings → Display → Language
- · Configuration → User Interface → Language
- · Setup → Localization → Language

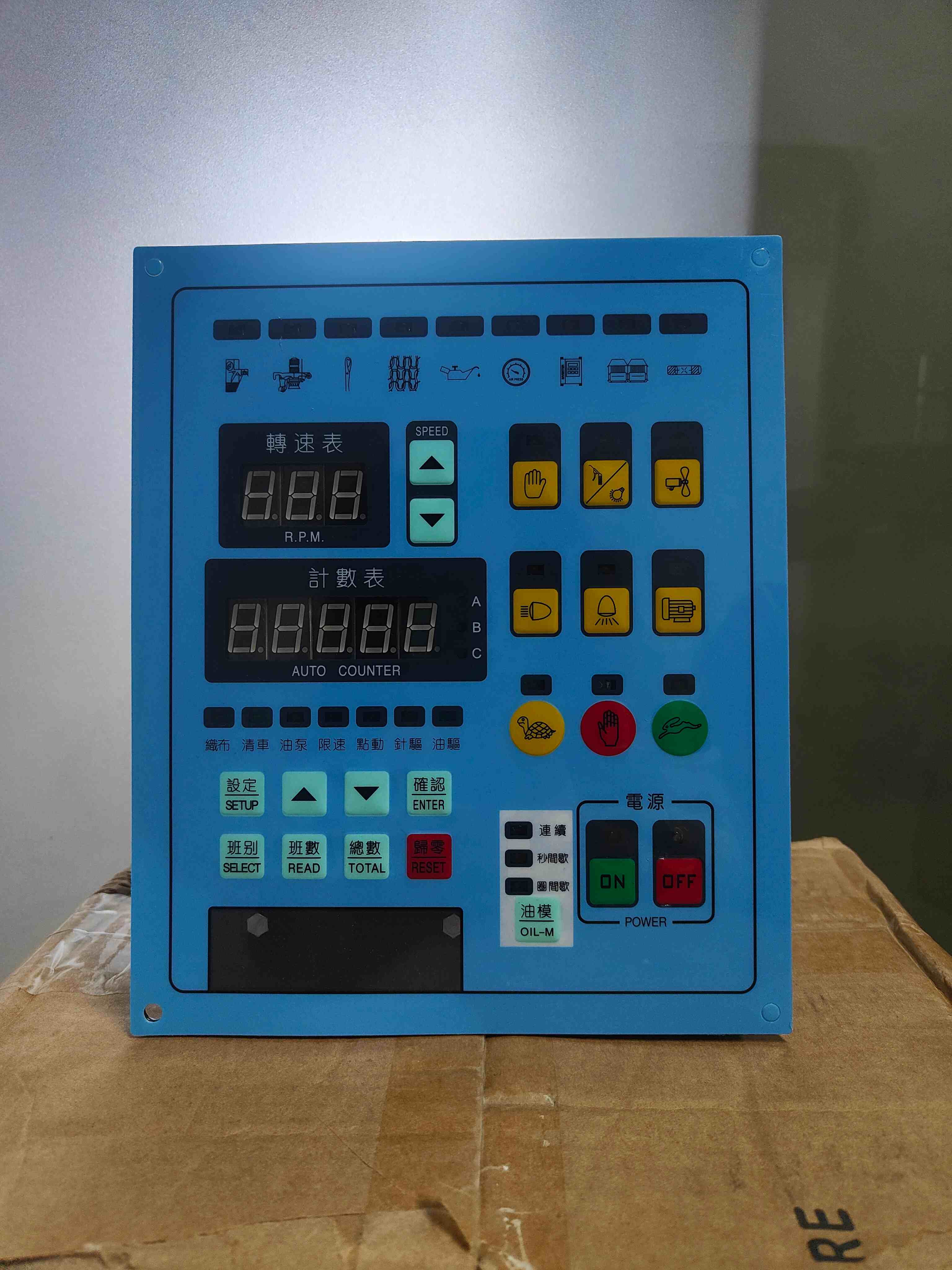

On older non-touchscreen panels with LCD displays, use the rotary encoder or arrow keys to navigate to the Language field.
Step 4: Select Your Preferred Language
A dropdown list or a series of flag icons will appear. Tap or scroll to your target language — for example, English, chinese, Türkçe, or Português — and confirm the selection. Most systems apply the change immediately upon selection without requiring a reboot.
Step 5: Confirm and Restart If Required
Some older jersey knitting machine control systems require a soft restart to apply language changes. If the screen does not update immediately, navigate to: System → Restart HMI or simply power-cycle the control panel (not the machine motor). The new language will load upon restart.
Brand-Specific Notes
Mayer & Cie. (Control 5.0 System)
Mayer & Cie.'s latest Control 5.0 system — launched in May 2025 — features a redesigned human-machine interface (HMI) with a modern touchscreen. Language settings are accessible via the top-right user menu icon. The system supports multiple European and Asian languages and syncs language preferences with the cloud-based Knitlink platform. This makes it one of the most accessible circular knitting machine control systems for international operators.
Chinese OEM Single Jersey Machines
For Chinese-manufactured single jersey circular knitting machines — a large segment of the global market given China's dominance in machine exports — the control panel is typically a branded LCD or Android-based touchscreen. Language settings are commonly found under (System Settings) → (Language). Most units ship with Chinese as default and support English as a secondary option. Some advanced models additionally support Bangla, Vietnamese, and Indonesian.
Pai Lung & Taiwanese Brands
Pai Lung and similar Taiwanese manufacturers offer English/Chinese bilingual panels as standard. Language switching is typically immediate and found under Main Menu → Settings → Language.
Troubleshooting: Language Option Not Found or Greyed Out
If you cannot locate the language setting, or the option appears greyed out, consider the following:
1. Administrator/Supervisor login required — Language settings on some machines are locked behind a supervisor password. Contact your machine supplier for the default admin credentials.
2. Firmware version too old — Older firmware may not support your desired language. Request a firmware update from the manufacturer or authorized service agent.
3. Hardware-locked region variant — Some machines are sold in region-specific firmware versions. In this case, a firmware reflash or OEM support contact is required.
4. Control panel replacement — If the machine is very old and lacks a modern HMI, retrofitting a new circular knitting machine control panel with multilingual support is a cost-effective upgrade option.
The Business Case for Proper Language Setup
Beyond operator comfort, correctly configured knitting machine language settings have measurable business impact:
- · Reduced error rates — Operators who read instructions in their native language make fewer input mistakes on pattern programs, speed settings, and feeder configurations.
- · Faster onboarding — New staff on single jersey or double jersey knitting machines can be trained in days rather than weeks when screens are readable.
- · Lower maintenance costs — Misread fault codes are a leading cause of delayed response to machine alarms. Native language alerts mean faster, more accurate reactions.
Compliance in export markets — Factories supplying certified apparel brands may be required to demonstrate safe machine operation standards, including legible operator interfaces.
