How Multi-Head Anti-Dust Devices (Circular Knitting Machine Fans) Effectively Combat Fly and Modernise Your Knitting Workshop

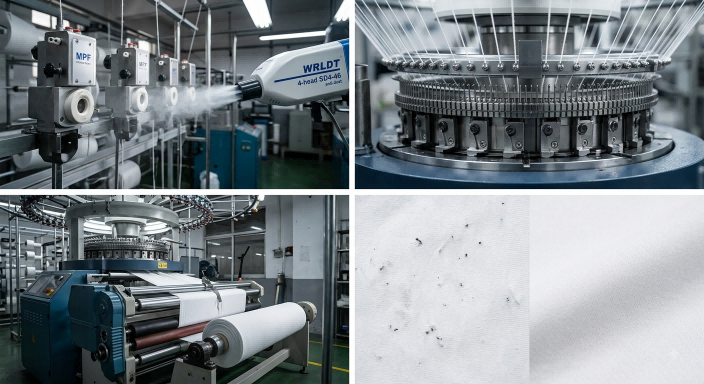

In the production environment of modern knitting mills, the loop-forming systems of large circular knitting machines—due to their high rotational speeds, high output and rapid pattern changes—inevitably generate large amounts of fly and dust during the knitting process (particularly when using cotton yarn).

These seemingly minute fibre impurities, if not removed promptly, are often the source of headaches for knitting mill owners and buyers:

• Yarn feeding disruptions: Fly fibres become entangled in yarn racks, yarn storage units or yarn feeders, increasing resistance and leading to yarn breaks.
• Fabric defects: Fly fibres mixed into the fabric form neps or colour spots, severely affecting the quality of the finished fabric.
• Equipment malfunctions: Dust accumulates on the cams and in the needle channels, causing wear and tear on machine components and potentially leading to production safety issues.

As an industrial B2B specialist with 10 years’ experience, I am well aware of the importance of maintaining machine cleanliness for improving production capacity and fabric quality. Today, we will take an in-depth look at a core component within the electrical control and lubrication/cleaning systems of circular knitting machines—the Anti-dust Device (dust extraction fan/cleaning device).

Introduction to the Circular Knitting Machine Dust Extraction Fan (Anti-dust Device)

The circular knitting machine dust extraction fan is a component specifically designed for circular knitting machines, typically categorised as the Top Anti-dust Device and the Middle Anti-dust Device.

Driven by an electric motor, the fan blades rotate at high speed to generate a powerful airflow. Installed at various strategic locations on the circular knitting machine, they are used to remove impurities such as fly-off yarn and lint from a wide area spanning the machine bed, the creel, the storage feeders and the knitting components.

Core Functions: Cleanliness Equals Productivity; Quality Equals Survival

The functions of dust extraction fans are primarily reflected in the following aspects, directly addressing the pain points faced by textile mills:

1. Improving Production Efficiency (Increasing Output)

By delivering a powerful airflow, they continuously maintain the cleanliness of the machine and key yarn-feeding components, significantly reducing planned or unplanned downtime caused by blockages or entanglement of loose fibres (such as preventing automatic shutdowns due to yarn breaks). As stated in industry standards, dust extraction fans improve the stability of machine operation and reduce failure rates.

2. Ensuring product quality (reducing defects)

Effectively removing loose fibres and impurities from the weaving area prevents them from becoming mixed into the fabric during the loop-forming process. This is crucial for the production of high-end single-faced sweat fabrics, cotton-wool blends or jacquard fabrics, ensuring consistent product quality and reducing the production of substandard fabrics.

3. Improving the working environment (enhancing safety)

The presence of flying fibres in the knitting workshop not only affects the health of operators but also poses a fire hazard due to the accumulation of these fibres. An efficient dust extraction system improves air quality in the workshop and enhances the safety of the working environment.

Classification and Technical Selection of Anti-dust Devices

Dust extraction fans for large circular knitting machines are classified according to their installation location and machine type (single-sided or double-sided).

1. Top Anti-dust Device

Installed in the yarn rack area at the top of the large circular knitting machine, it is primarily responsible for cleaning the yarn cones, yarn guide tubes and the positive feeder.

• Technical Specifications: Common configurations include 3-head motors and 4-head motors (where the motor directly drives a varying number of fan blades).

2. Middle Anti-dust Device

Installed near the knitting area (e.g. between the upper and lower needle cylinders on a double-faced machine), this device focuses on cleaning the looping system.

• Differences in Application
• Single Jersey Machine: A middle anti-dust device is generally installed to deal with cotton yarn fly-off.
• Double-sided machines (Double Jersey): Mid-section dust removal was rarely fitted on early models, but modern high-density machines are also equipped with it to ensure quality. For example, two-stage double-sided central blowing shafts may be used on bobbin machines or double-sided loop-transfer rib jacquard machines.

Key Components and Considerations for Quality Selection

A high-quality Anti-dust Device must offer durability, stable electrical control and efficient airflow. Below are the key components from the machine specification sheet that you should refer to when purchasing or upgrading:

• Fan Motor: The core power source. For example, with the MDF model’s dedicated motor, it is essential to confirm whether it is intended for single-sided machines or double-sided/jacquard machines.
• Anti-dust Device Head: Controls the angle and range of the airflow.
• Fan Blades: Select different models of 3P (3-piece) or 4P (4-piece) fan blades depending on the specific location.
• Central Cleaning Components: Particularly suitable for cleaning the central area of double-sided machines or spreaders.

Conclusion

In the highly competitive knitted fabric market, even the slightest differences in fabric quality can often determine profit margins. Although the dust extraction fan (Anti-dust Device) for large circular knitting machines is merely an accessory, it serves as a vital technical safeguard for ensuring high-speed machine operation, minimising yarn breaks and eliminating colour spots and imperfections when there is a significant issue with lint from the raw material (cotton yarn).
