Single Jersey Seamless Underwear Yoga leggings T shirts Circular Knitting Machine
Product Description
Seamless circular knitting machine Adopting a breakthrough electrical system, stable, reliable, and high-definition LCD display screen, the intelligent digital electronic control system has functions such as human-machine dialogue, automatic detection, fault alarm, error display, organization transformation, density adjustment, automatic lubrication, finished product output, production statistics, and automatic speed change according to process requirements. The data can be read and written through a USB flash drive or linked to a computer, and the software can be upgraded online, The oil circuit is controlled by a computer program, and refueling is carried out according to refueling commands. It also has the function of oil quantity distribution and oil pressure alarm light.
FEATURES
EASTINO electronic jacquard seamless underwear knitting machine adopts non-contact motor and electric controlled manual turning device. The double-layer base for installing the knitting parts adopts full numerical control processing to ensure that the installation positions between the parts are relatively accurate and improve the reliability of the machine. The panels that determine the main process track are made of imported front steel materials, and the whole circle is integrated design, which effectively improves the mechanical stability. The needle barrel is designed in a separate structure, with a large space for miscellaneous removal, and it is very convenient for installation and maintenance. The control solenoid valve adopts an integrated design, which makes the machine tidy and easy to maintain.
Performance Parameter
| Tube Diameter | 11inch-22inch |
| Gauge | 18G 22G 26G 28G 32G 40G |
| Number of feeds | 8 for every diameter |
| Maximum speed | 80-130rpm(the maximum speed of 11-15inch 28g machine is 110-130 rpm/min |
| Needle selection device | 2 pcs 16-level needle selection device for each feed |
| Needle selection knitting type | The 8 feeds all have 3-functions to select needles, it can also use 2-funtion to select needle and theother 1 function is for dyed yarn, each feed can knit the plaiting organization |
| Rib top knitting | Use the different selection needles to knit the single tying or double tying. The rib top rubber string canbe knitted by lining or floating threads. |
| Stitch cam | The stepping motor regulates the sewing stitch sizl, and each feed is controlled independently |
| Control system | The independently developed electronic control system controls all outputs and receives programs anddata through the USB device. Programs and data can also be passed through a network device |
| Half-type plate rise and fall | Pneumatic control Half-type moving upwards and downwards, slight adjustment is controlled by pneumatic and mechanical limit. |
| Drive system | Servo motor,gear drive and synchronous belt driveYarn finger device |
| Yarn finger device | One set for each feed, and each set includes 8 yarn finger (including 2 dyed yarn finger) |
| Take-down | Suction with 2 fans or central |
| Yarn sensor | Serial photo electricity yarn sensor (the standard configuration is 43pcs, optional configuration 64pcs) |

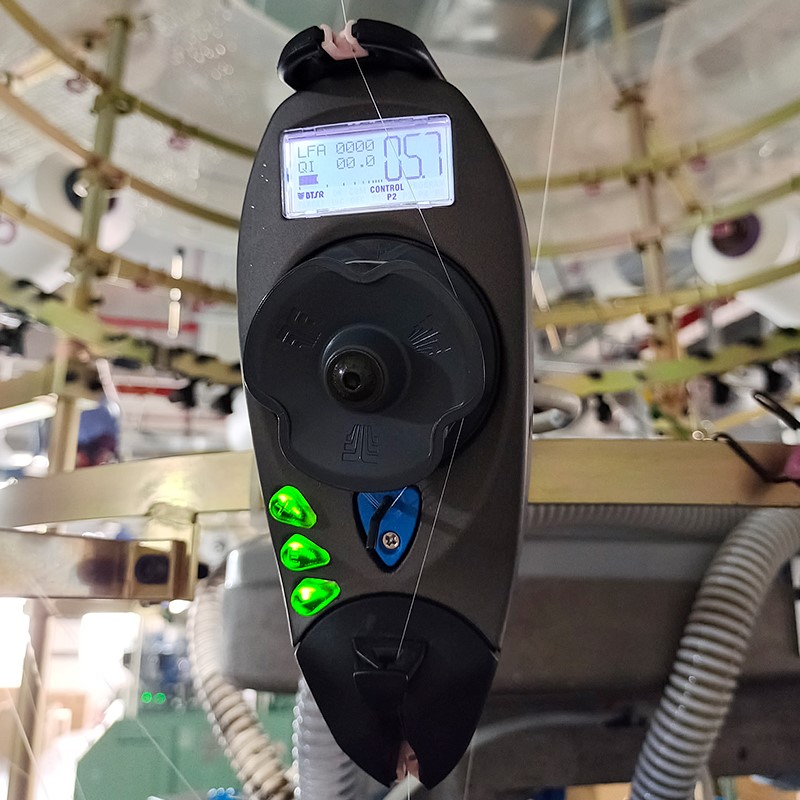

| Yarn feeders | 8pcs, among which the 2.6 feed can equip with one KTF |
| Power dissipation | Major motor: 3KWInduced draft
nameeeeoich-16inch:Three-phase AC 380V.50 HZ.1.3KW 2pcs or 2.6KW 1pcs draught fan. diameter:17inch=20inch Compressed air: 50 litre/min, 6BAR |
| Spandex feeders | Optional configuration 8pcs |
| Refueling device | Pneumatic type circulation refueling device |
| Weight | Around 700Kg |
Application
EASTINO full computerized seamless underwear knitting machine have been studied by our company for two years.with experience&technique in producing seamless knitting machine, it was been innovating and upgrading and it can automatic knit the rib stitch according to technology without other auxiliary equipment.The machine can knit terry and it stuck stitch besides the great function of fleecy and jacquard.it can produce various garment fabric mainly including under-wear,outer-wear fabric.yoga, swim-wear,sport-wear and health.
