In modern circular knitting production, the fabric take down system has become a critical functional module that directly affects fabric quality, machine stability, and overall production efficiency. Often referred to as a fabric take down system or fabric winding system, this component is responsible for continuously drawing knitted fabric away from the needle zone and forming uniform fabric rolls. As circular knitting machines evolve toward higher speeds, finer gauges, and more complex fabric structures, the performance of the fabric take down system is gaining increasing attention across the industry.
Structural Composition of a Fabric Take Down System
A fabric take down system is typically installed beneath the knitting cylinder and is mechanically and electronically integrated with the circular knitting machine. Its main structural components include:
Take Down Rollers: These rollers grip the knitted fabric and guide it downward in a stable and controlled manner.
Drive System: The system may be powered by mechanical transmission, inverter-controlled motors, or servo motors, depending on machine level and precision requirements.

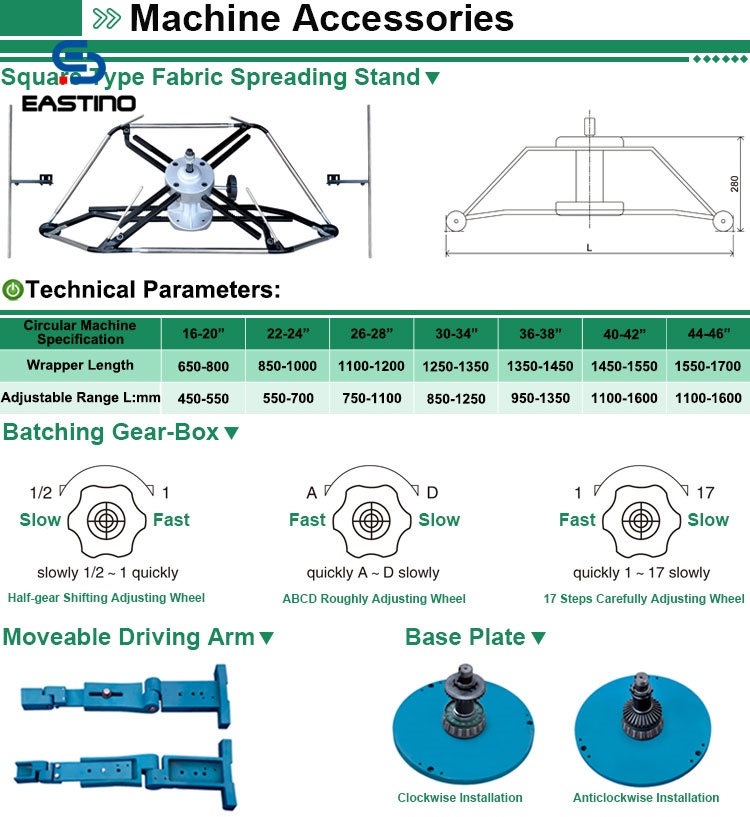

Fabric Guides and Spreaders: These components ensure even fabric alignment before winding, preventing edge curling and fabric distortion.

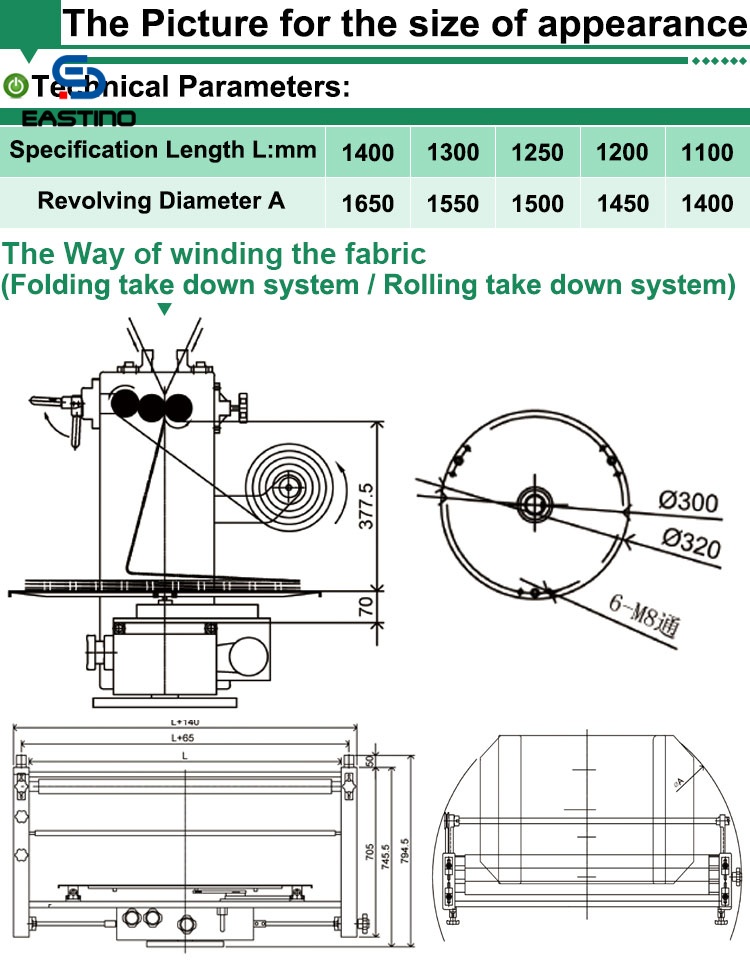

Winding Shaft or Fabric Beam: The fabric is rolled into a compact and uniform package for easy handling and transportation.
Tension Control Mechanism: Mechanical regulators or electronic sensors maintain consistent fabric tension during the take-down process.
Supporting Frame and Mounting Structure: Provides rigidity, vibration resistance, and accurate alignment with the knitting machine.
In advanced configurations, the fabric take down system is electronically synchronized with machine RPM, stitch density, and yarn feed speed.
Core Functions in Circular Knitting Operations
The primary function of a fabric take down system is to remove knitted fabric from the knitting zone at a precisely controlled rate. This function is essential to maintaining stable loop formation and fabric appearance.
Key operational functions include:
Maintaining uniform fabric tension to ensure consistent stitch length
Preventing fabric accumulation that may interfere with needles or sinkers
Supporting stable machine operation during high-speed production
Producing neatly wound fabric rolls suitable for downstream processing
Without a properly functioning fabric take down system, even advanced circular knitting machines cannot achieve reliable production or consistent fabric quality.
Types of Fabric Take Down Systems
Fabric take down systems used in circular knitting machines can be classified into several main types:
Mechanical Fabric Take Down Systems
Traditional systems driven by gears, chains, or belts. They are robust and cost-effective but offer limited flexibility and adjustment precision.
Electronic or Servo-Controlled Fabric Take Down Systems
These systems use servo motors and digital controllers to precisely regulate take-down speed. They are widely adopted in high-speed, fine-gauge, and electronic jacquard circular knitting machines.
Centralized Fabric Take Down Systems
Designed for large-diameter fabric rolls, suitable for mass production environments requiring long, uninterrupted fabric lengths.
Dual or Split Fabric Take Down Systems
Used for special fabric constructions or wide-width applications, allowing better tension distribution and roll uniformity.
Major Brands and Manufacturers
Leading circular knitting machine manufacturers typically integrate proprietary fabric take down systems optimized for their equipment. Well-known brands include:
Mayer & Cie. (Germany)
Santoni (Italy)
Terrot (Germany)
Fukuhara (Japan)
In addition, numerous specialized manufacturers from China and Taiwan supply OEM-compatible fabric take down systems. These systems are widely used for replacement, upgrading, and retrofitting existing machines, offering competitive pricing and reliable performance for standard knitting applications.
Role and Impact on Fabric Quality
The fabric take down system has a direct and measurable impact on fabric quality and production stability:
Stitch uniformity: Improper take-down tension can cause uneven loop length.
Fabric surface appearance: Poor control may result in creases, stripes, or deformation.
Machine durability: Excessive tension increases needle breakage and cam wear.
Operational efficiency: Smooth fabric rolling reduces downtime and manual handling.
For high-value fabrics such as sportswear, elastic textiles, and technical knits, precise control of the fabric take down system is essential.
Market Status and Industry Demand
The global demand for fabric take down systems closely follows the growth of the circular knitting machine market. Asia—particularly China, India, Bangladesh, and Southeast Asia—remains the largest market due to its concentration of knitting factories.
Current market trends include:
Growing preference for servo-driven fabric take down systems
Increased focus on fabric tension stability and consistency
Integration with digital machine control platforms
Demand for low-maintenance, long-life designs
Retrofitting modern fabric take down systems onto existing machines has become a cost-effective solution for manufacturers seeking quality improvement without full machine replacement.
Industry Trends and Future Outlook
Industry experts anticipate that future fabric take down systems will continue to develop toward:
Smart tension sensing and automatic adjustment
Full synchronization with electronic knitting parameters
Enhanced adaptability to different fabric weights and structures
Improved operator interfaces and reduced setup time
As circular knitting technology advances, the fabric take down system is increasingly recognized as a key performance driver rather than a secondary accessory.
Conclusion
The fabric take down system is an indispensable component of circular knitting machines, directly influencing fabric quality, machine stability, and production efficiency. As manufacturers pursue higher speeds, finer gauges, and smarter automation, demand for advanced fabric take down systems will continue to rise, reinforcing their essential role in modern knitting operations.
